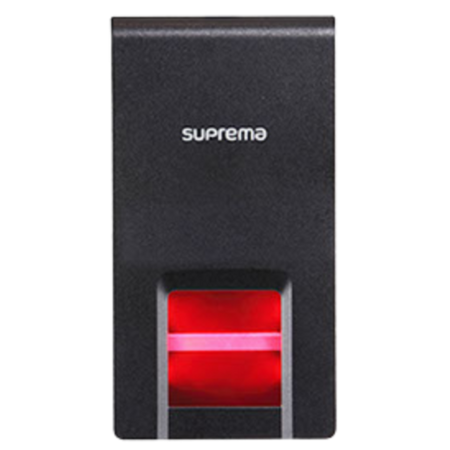

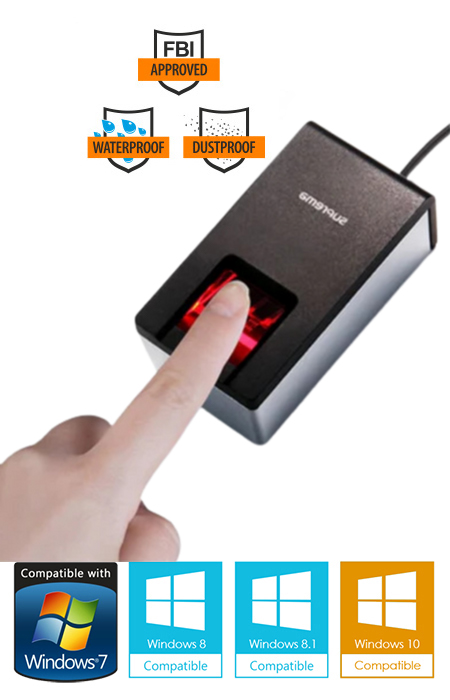

Suprema RealScan-G1 Compact Enrollment Scanner (SWFT+ Compatible)

RealScan-G1 enrollment scanner meets requirements of FBI PIV Certification, making it suitable for civil, criminal and AFIS applications.

Suprema RealScan-G1

$320.00

In stock

FREE DOMESTIC SHIPPING ON ORDERS OVER $250
Questions? Ask our experts:  877-917-3287.
Need over 25 units? Request a Quote

  • Compact single-finger live scanner with LFD, designed for using in high traffic enrollment and identification applications.
  • Secure Web Fingerprint Transmission Plus Enrollment (SWFT+) compatible, FBI PIV-IQS and FBI Mobile ID FAP30 certification for civil ID and AFIS.
  • IP54 rated dust and waterproof design, easy-to-mount design for desktops and kiosks.

Supported Software

A scalable, reliable and high performing biometric identification solution for seamless integration.

Fingerprint SDK

Zero learning curve for developers. No biometric programming experience required. Get access to sample codes in multiple languages including C/C++, C#.NET, Java etc.

LEARN MORE

Computer Logon

Logon to Windows, Domain, Websites and Applications using fingerprints & create a ”password free” environment. Enterprise Password Management with Seamless Interface to Active Directory.

LEARN MORE

Product Description

At first glance, Suprema RealScan-G1 scanner feels nothing short of ordinary until you go through what it offers. This FBI PIV certified single-finger live scanner is made for applications that demand high level of accuracy. Being FBI PIV certified, RealScan-G1 adheres to stringent quality requirements prescribed by the FBI, making it a perfect candidate for government, AFIS, criminal as well as civil applications.

FBI PIV certification, however, is not the only highlight of this little master. It comes with Suprema’s Hybrid Live Finger Detection (LFD) technology, which gives RealScan-G1 an edge over competition. Live Finger Detection technology protects the system from circumvention. LFD technology efficiently scrutinizes fake fingerprint attacks, which can be a crucial aspect in high security applications. All this comes in a slim and compact form factor thanks to Suprema’s experience and excellence in optical engineering.

Suprema has kept total control on image quality in RealScan-G1 and equipped it with the ability to automatically verify image quality and eliminate side effects like ghost image and halo effect while capturing fingerprint images.

RealScan-G1 holds an IP54 rating, which means that it can withstand dust, moisture and even water splashes. RealScan-G1 is as good for desktop use as it is for integrating with other systems like mobile kits or kiosks, thanks to it thoughtful design.

Special Features

  • Slim and compact form factor
  • FBI PIV-IQS certified
  • Suprema’s proprietary Hybrid Live Finger Detection (LFD) technology
  • Dust and waterproof design, hold IP54 rating
  • USB2.0 data and power
  • Integrated LED indicator
  • FIPS 201 certification
  • Easy-to-mount design for desktops and kiosks
  • inch wide solid and scratch-free platen

RealScan-G1 Specifications

Fingerprint Type Single Finger Flat
Frame Rate 15 frames per second
Resolution 500 dpi, 256 gray
Platen Size (W x L) 27.4 x 28 mm (1.08” x 1.1”)
Sensing Area (W x L) 25.4 x 25.4 mm
Image Size (W x L) 500 x 500 pixels
USB 2.0 High-speed (Data & Power)

IP Rating IP54
Operating Temperature -10°C ~ 50°C
Operating Humidity 10 ~ 90%, non-condensing
Dimension (W x L x H) 55 x 106.5 x 44.5 mm (2.2″ x 4.2″ x 1.8″)
Weight 0.18kgs (0.40lbs)
Certification WHQL, CE, FCC, UL, KC, USB-IF
Operating System Windows, Linux

The perfect fingerprint device for you!

Suprema RealScan-G1 is suitable for civil, criminal and AFIS applications.

FBI PIV Certification for Civil & AFIS

RealScan-G1 meets stringent quality requirements of FBI PIV Certification, making it suitable for civil, criminal and AFIS applications.

Slim and Compact Design

When it comes to large scale enrollment or registration applications like biometric voter registration or civil ID enrollment campaigns, scanner compactness can be a real virtue. With RealScan-G1, you do not have to compromise with compactness no matter how complex your use case is. Its compact design offers least obstruction even in most hectic situations and its stays as good as invisible until you need to scan a fingerprint.

Wide & Solid Platen

Platen size is very important in capturing a full fingerprint from all sides without fingertip falling out of platen border. It is also a crucial requirement for FBI PIV certification. RealScan-G1 has a fairly wide platen measuring 1.1 inch, which can capture fingerprint images with 500 x 500 pixels resolution. Wide platen allows users with all fingertip sizes to comfortably place their finger on the platen and RealScan-G1 to capture fingerprint images without any partial loss.

IP54 Rated Dust and Waterproof Structure

Owing to its sealed construction, RealScan-G1 can survive accidental liquid spills, moisture and dust that might sneak in due to harsh environmental conditions. Due to its protective construction against dust and liquid, it has been awarded IP54 rating.

Hybrid Live Finger Detection (LFD) Technology

With Suprema’s proprietary Hybrid Live Finger Detection (LFD) Technology, RealScan-G1 can detect fake fingerprint thanks to its advanced analysis algorithm. Fake fingerprint made with flexible material like rubber, silicone, film, paper, etc. bring along subtle irregularities, which can be detected by RealScan-G1’s analysis algorithm.

It also takes several static characteristics of finger liveness under consideration, which are not posed by fake fingerprint replicas or spoofs. Live Finger Detection (LFD) Technology makes sure that fake fingerprint cannot circumvent the system.

RealScan-G1 Applications

National ID Cards

  • Smart ID cards
  • Enrollment 1:1, 1:N matching

E-Passport and Visa

  • e-Passport issuance
  • e-Visa program

Criminal Identification

  • IAFIS / EURODAC
  • Law enforcement, national police agencies
  • Crime and Criminal Tracking Network & Systems (CCTNS)

Airport & Border Check

  • IDENT (USA, Japan)
  • Enrollment and matching for foreign travelers

Background Check

  • Employment background checks
  • Pre-employment screening

Civil Identification

  • Driver’s license, voter registration
  • Social welfare, banking
  • National Population register (NPR)
