UBio-X Slim: Premium Access Control with Elegant Design

Nitgen UBio-X Slim access control & time and attendance system. Efficient technology meets elegant design.

Nitgen UBio-X Slim


In stock

Questions? Ask our experts:  877-917-3287.
Need over 25 units? Request a Quote

  • Premium card and fingerprint recognition terminal with Quad Core CPU, 2GB RAM & 8GB of flash memory for secure access control.
  • Supports multiple smart card technologies from 125KHz and 13.5MHz (e.g., PROX, ICLASS, RF and SC).
  • Built in large memory can store up to 500,000 users; 10,000,000 event logs and 50,000 image logs.
  • Enhanced fake fingerprint detection technology.

Product Description

UBio-X Slim seems like a perfect point of convergence where design and technology meet. If have good sense of design in technology products, UBio-X Slim is sure to grab your attention. No wonder it suffixes Slim in its name to flaunt its prominent design element.

While elegant design alone is enough to make you want it, UBio-X Slim’s performance and internals are where it gets more interesting.

It comes equipped with a powerful 1.4 GHz Quad Core Cortex A9 Processor to deal with all access control or time and attendance challenges thrown at it. To make sure that processing power is not bottlenecked by the amount of RAM, UBio-X Slim sports 2GB DDR3 of it.

Adequate hardware specs give it enough power to match 200,000 templates in just 1 second. It can store up to 500,000 templates, 10,000,000 event logs and 50,000 image logs, thanks to its built-in 8GB storage implemented with flash memory. Despite looking elegant, it is heavy duty at core and can even endure high volume access control or time and attendance transaction.

UBio-X Slim: Salient Features

  • Slim and elegant design, yet efficient access control
  • Matching speed: 200,000 templates in 1 second
  • Can store up to 500,000 users, 10 Mil log data and 50,000 picture storage
  • Super-fast 1.4 GHz Quad Core processor
  • Patented fake fingerprint detection technology
  • Extended versatile interface

Usability and Applications

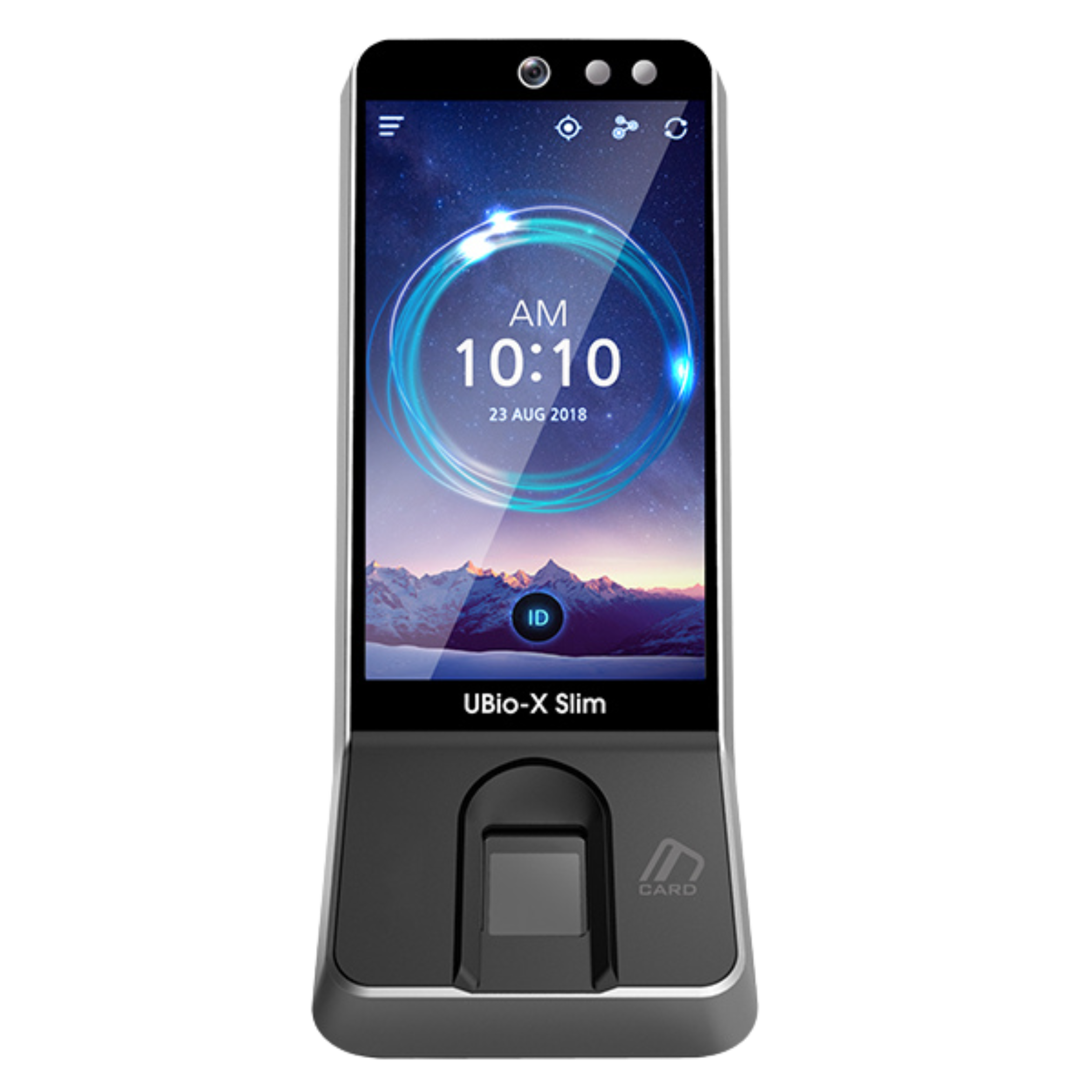

UBio-X Slim comes with a 5 inch color LCD TFT display, which is protected by a reinforced glass screen. With great viewing angles and intuitive interface, its usability stays unmatched. Upper portion of UBio-X Slim is mostly covered by the LCD display. Lower portion bends toward the user providing an inclined surface to comfortably place the finger.

Being a premium card and fingerprint recognition system, it is a perfect choice for access control as well as time and attendance applications, specially where aesthetics are an important factor.

UBio-X Slim: Specifications

Authentication Method Biometric
Dust/ Water Resistance X
Memory Max Users 500, 000
Fingerprints (Templates) 200, 000 (1:N, 1:1)
Logs 10,000,000
Images 50,000
Communication With Server TCP/IP
Other USB
Wireless LAN(Wi-Fi) Optional
Wiegand OUT O
RS232 O
RS485 O
Wiegand IN O
Display LCD 5″ Color Touch
Backlight O
Embedded Camera O
Card 125khz-EM O
HID Prox O
HID iclass O
13.56MHz Smart Card O
Keypad Touch Screen
Function keys SOFT
Door Phone
FP Sensor Platen Area 16.4 X 19.4 mm
Resolution 500 dpi
Authentication Speed (1:1) < 0.5 sec
1:N(1,000) < 1 sec
Dimension (W) X (H) X (D) mm 80 x 195.6 x 23.5 (Upper) / 54.67(Lower)
FRR /FAR 0.1% / 0.0001%
Operating Temperature -20 ~ 60℃

Still not convinced? We’ve got plenty more features lined up for you
