Suprema BioMini Slim 2: Ultra-Slim Authentication Scanner

BioMini Slim 2: World’s thinnest FBI PIV and Mobile ID certified FAP20 optical scanner with advance liveness detection technology.

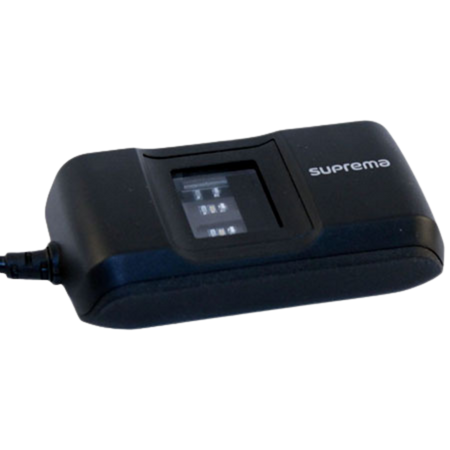

Suprema BioMini Slim 2

$149.00

In stock

FREE DOMESTIC SHIPPING ON ORDERS OVER $250
Questions? Ask our experts:  877-917-3287.
Need over 25 units? Request a Quote

  • Ultra slim (72.8 x 40.7 x 18.5 mm) FBI PIV and FBI Mobile ID FAP20 certified fingerprint scanner.
  • Equipped with Intel Core2Duo features fast fingerprint matching on-board: 100,000 match / second.
  • Advanced live finger detection (LFD) technology can easily detect fake fingerprints made from various materials including clay, rubber, silicon, glue, paper, film and more.
  • BioMini SDK for easy application development.

Supported Software

A scalable, reliable and high performing biometric identification solution for seamless integration.

Fingerprint SDK

Zero learning curve for developers. No biometric programming experience required. Get access to sample codes in multiple languages including C/C++, C#.NET, Java etc.

LEARN MORE

Computer Logon

Logon to Windows, Domain, Websites and Applications using fingerprints & create a ”password free” environment. Enterprise Password Management with Seamless Interface to Active Directory.

LEARN MORE

Product Description

Suprema’s BioMini Slim 2 scanner range is known for offering rich features in a nicely designed super thin package and BioMini Slim 2 does seem to deviate from the trend. It offers a host of cutting edge technologies with a sleek design and super compact form factor.

First and foremost, BioMini Slim 2 is the world’s thinnest FBI PIV and FBI Mobile ID certified FAP20 optical fingerprint scanner. Thickness of the optical sensor measures mere 13.5mm. At 16.5mm x 21.0mm its platen size is way larger than what is required for being FAP20 certified.

Suprema has equipped BioMini Slim 2 with MDR (Multi Dynamic Range) technology, which makes sure that fingerprint image quality stay unaffected even in the harshest lighting condition. MDR technology makes BioMini Slim 2 immune to ambient lighting and it can uphold image quality even in 100,000 LUX direct light, which can be as intense as direct sunlight.

BioMini Slim 2 is immune to fake fingerprint attacks as well, thanks to Suprema’s advanced Live Finger Detection technology, which can detect fingerprint spoofs made from different material including glue, clay, film, rubber, paper, silicon and more.

Special Features

Sensor Technology

  • World’s slimmest FAP 20 optical sensor
  • Multi Dynamic Range (MDR) technology – Operates under max 100,000 lux of direct sunlight
  • Advanced Live Fingerprint Detection (LFD) technology

Easy Integration

  • BioMini SDK for easy application development
  • Android, MS Windows & Linux compatible
  • Multi-threaded code design for multi-core CPU utilization

Live Fingerprint Detection (LFD) Technology

  • Distinguishes fake fingerprints made from various materials including clay, rubber, silicon, glue, paper, film and more

Algorithm & Matching Speed

  • World’s best performing fingerprint algorithm: Top results in NIST MINEX tests and FVC
  • Fast matching speed: 100,000 match / second (with Intel Core2Duo)

Certificates & Standards

  • FBI PIV and FBI Mobile ID FAP20 certificates
  • NIST certified interoperable image & template format standards (ANSI-378, ISO19794-2/4)
  • Image compression standard: WSQ

BioMini Slim 2 Specifications

Sensor Type Optical
Resolution / Gray Scale 500 ppi / 256 levels
Platen Size 16.5 x 21.0 mm
Sensing Area 15.2 x 20.3 mm
Image Size 300 x 400 pixels
Image Certificate FBI PIV and FBI Mobile ID FAP 20
Template Format Suprema, ISO19794-2, ANSI 378
Image Format RAW, BMP, WSQ, ISO 19794-4
Live Fingerprint Detection Supported
IP Rating IP65(Sensor Surface)

USB 2.0 High Speed
Operating Temperature -10 ~ 50°C
Operation Humidity 0 ~ 90% RH
Certification CE, FCC, KC, RoHS, CB, WEEE, REACH, WHQL
Dimensions(W x L x H) 72.8 x 40.7 x 18.5 mm
Weight 91g
Operating System Windows XP, Vista, 7, 8, 8.1, 10 32/64bit
Ubuntu, Debian, Fedora, OpenSUSE, CentOS 32/64bit
Android 4.1(Jelly Bean) and Above

The perfect fingerprint device for you!

Advanced LFD technology distinguishes fake fingerprints made from various materials including clay, rubber, silicon, glue, paper, film and more.

World’s Slimmest FAP 20 Optical Sensor

BioMini Slim 2 features the world’s slimmest (13.5mm optical sensor) FAP 20 optical sensor.

Advanced Live Finger Detection (LFD) Technology

BioMini Slim 2 brings along Suprema’s excellence in detecting fake fingerprint attacks with Advanced Live Finger Detection (LFD) Technology. BioMini Slim 2 not only captures impeccable fi­ngerprint images, but can also distinguish whether they come from a live finger or by a fake spoof. LFD technology enables BioMini Slim 2 to detect fake fingerprint attacks made with material like glue, clay, film, rubber, paper, silicon and more.

Multi Dynamic Range (MDR) Technology

Suprema’s proprietary MDR (Multi-dynamic Range) technology ensures that fingerprint image can be upheld even in the harshest lighting condition. MDR technology make BioMini Slim 2 immune to ambient lighting and it can capture high quality fingerprint images even in 100,000 LUX direct light, which can be as intense as direct sunlight.

FBI PIV and FBI Mobile ID FAP20 certificates

BioMini Slim 2 is the world’s thinnest FBI PIV and FBI Mobile ID certified FAP20 optical fingerprint scanner. BioMini Slim 2’s platen size measures 16.5mm x 21.0mm, which exceeds the platen size requirement of FAP20 standard.

BioMini Slim 2 Applications

  • PC / Network Security
  • Smart Card Application
  • Time and Attendance System
  • Public Application
  • Health and Medical
  • Telecommunication
  • Banking / Finance
  • POS / mPOS / ATM / Kiosk
  • Enterprise
