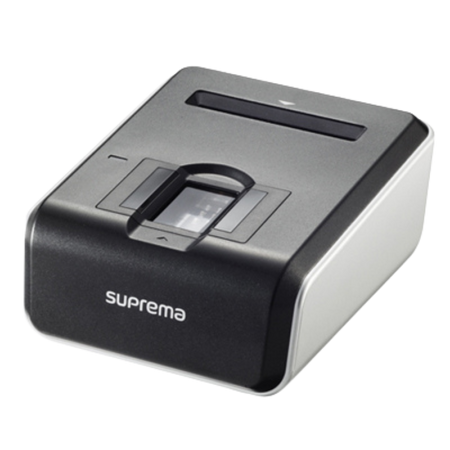

Suprema BioMini Combo Fingerprint + Smartcard Reader

BioMini Combo: two factor authentication scanner. With Fingerprint sensor and contact / contactless smartcard reader.

Suprema BioMini Combo

$199.00

In stock

FREE DOMESTIC SHIPPING ON ORDERS OVER $250
Questions? Ask our experts:  877-917-3287.
Need over 25 units? Request a Quote

  • Optical fingerprint scanner and embedded smart card reader with optional SAM slot.
  • FBI PIV/FIPS 201 and FBI Mobile ID FAP20 certified fingerprint sensor and ISO/IEC 7816 and EMV 2000 compliant smart card reader.
  • Advanced Live Finger Detection technology analyzes and categorizes image patterns according to optical characteristics.
  • Two factor authentication for versatile security solutions.

Supported Software

A scalable, reliable and high performing biometric identification solution for seamless integration.

Fingerprint SDK

Zero learning curve for developers. No biometric programming experience required. Get access to sample codes in multiple languages including C/C++, C#.NET, Java etc.

LEARN MORE

Computer Logon

Logon to Windows, Domain, Websites and Applications using fingerprints & create a ”password free” environment. Enterprise Password Management with Seamless Interface to Active Directory.

LEARN MORE

Product Description

If judged by sheer looks, BioMini Combo looks nothing more than an average fingerprint scanner; however, that perception quickly fades when you know what it can do.

BioMini Combo is not just an ordinary fingerprint scanner, it is two-factor authentication solution designed for security focused applications and use cases. Other than being a FBI PIV and Mobile ID FAP20 Certified fingerprint scanner, it is a contact / contactless / dual smart cards reader and an RF card scanner.

Card based authentication, along with fingerprint authentication provides strong two factor authentication platform for security centric applications.

Adding card reading functionality did not hinder Suprema to add some of its innovative technologies to BioMini Combo. Bio Mini Combo’s fingerprint recognition makes use of Advanced Live Finger Detection (LFD) Technology, which is a liveness detect mechanism.

It also features Multi Dynamic Range (MDR) Technology, which enables the device to uphold its performance even in some of the harshest lighting conditions. Be it direct sunlight or artificial light, ambient lighting does not deter BioMini Combo to keep doing what it is designed to do.

Special Features

Technology

  • Two factor authentication supports optical fingerprint sensor combined with contact / contactless smart cards and optional SAM slot

Image Quality

  • Operates under direct sunlight up to 100,000 LUX
  • Capturing high-quality fingerprint images even when the finger is dry and wet

Key Specification

  • Interface with NFC-enabled devices
  • Transmission rate: 2 Kbps to 500 kbps

Android Support

  • Versatile solution with custom-made Android apps
  • Smart card SDK for Android

Live Fingerprint Detection

  • LFD technology distinguishes fake fingerprints made from various materials including clay, rubber, silicon, glue, paper, film and more

Compatibility

  • Supports SAM Slot (Optional)
  • Compliant with ISO 7816 Contact Smartcard and EMV 2000 version 4.1

Smartcard Support

  • ISO/IEC 14443 A&B (NFC), Mifare, Felica
  • Supports 5V (55mA), 3V (50mA), 1.8V (20mA) Smart Card

Certificates & Standards

  • FBI PIV and FBI Mobile ID FAP20 certificates
  • Image compression standard: WSQ

BioMini Combo Specifications

Sensor Type Optical
Resolution / Gray Scale 500 ppi / 256 levels
Platen Size 18.0 x 25.4 mm
Sensing Area 16.2 x 24.3 mm
Image Size 320 x 480 pixels
Image Certificate FBI PIV and FBI Mobile ID FAP 20
Template Format Suprema, ISO 19794-2, ANSI 378
Image Format RAW, BMP, WSQ, ISO 19794-4
Live Fingerprint Detection Supported
IP Rating IP65(Sensor Surface)
Contact Smart Card Reader ISO 7816 Class A/B/C (5V, 3.0V, 1.8V) T=0, T=1 EMV2000 contact smart card with SAM Slot (optional, max 2x SAM)

Contactless Smart Card Reader ISO/IEC 14443 A&B, Mifare, Felica NFC Forum tag types (Jewel, Mifare Ultralight, Felica, Felica lite, Mifare, DesFire)
EMV2000 Contactless Smart Card
Frequency 13.56MHz +/- 7KHz
Distance transaction: Up to 10cm
Baud: 106/212/424/848 kbit/s
USB 2.0 High Speed
CCID, PC/SC driver
Operating Temperature -10 ~ 50°C
Operation Humidity 0 ~ 90% RH
Certification CE, FCC, KC, RoHS, WHQL
Dimensions(W x L x H) 95.7 x 114.8 x 52.6 mm
Weight 280g
Operating System Windows XP, Vista, 7, 8, 8.1, 10 32/64bit
Ubuntu, Debian, Fedora, OpenSUSE, CentOS 32/64bit

The perfect fingerprint device for you!

Advanced LFD technology distinguishes fake fingerprints made from various materials including clay, rubber, silicon, glue, paper, film and more.

Advanced Live Finger Detection Technology

BioMini Combo includes Suprema’s innovative and highly efficient Advanced Live Finger Detection (LFD) Technology. This technology uses machine learning to analyse and categorize image patterns by examining optical characteristics.

Stronger Security with Smart Card Reader

BioMini Combo comes equipped with RF sensor and ability to read contact / contactless smart cards, which can be used to setup two-factor authentication with fingerprint recognition. 2FA results in stronger authentication security and improved confidence in identity claims. It also comes with optional SAM slot. Ability to setup two factor authentication makes BioMini Combo a perfect candidate for security focused use cases.

FBI PIV and Mobile ID FAP20 Certified

BioMini Combo’s platen size measures 0.71” x 1.0” (18mm x 25.4mm) wide, which even exceeds the FAP20 standard requirement, which is 0.6” x 0.8”.

Multi Dynamic Range Technology

Multi Dynamic Range (MDR) Technology is Suprema’s another proprietary tech that enables fingerprint scanners capture images with unhampered quality. Strong ambient light can interfere with the internal lighting of the scanner and easily deteriorate fingerprint image quality. But with MDR Technology, BioMini Combo can work even in harshest ambient light as bright as 100,000 Lux, which is no less than the direct sunlight.

BioMini Combo Applications

  • PC / Network Security
  • Smart Card Application
  • Time and Attendance System
  • Public Application
  • Health and Medical
  • Telecommunication
  • Banking / Finance
  • POS / mPOS / ATM / Kiosk
  • Enterprise
